18" Square Flat Burner Pan with Opening for Pilot Burner

• 6" Diameter Fire Ring - 43K BTU's (304 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer

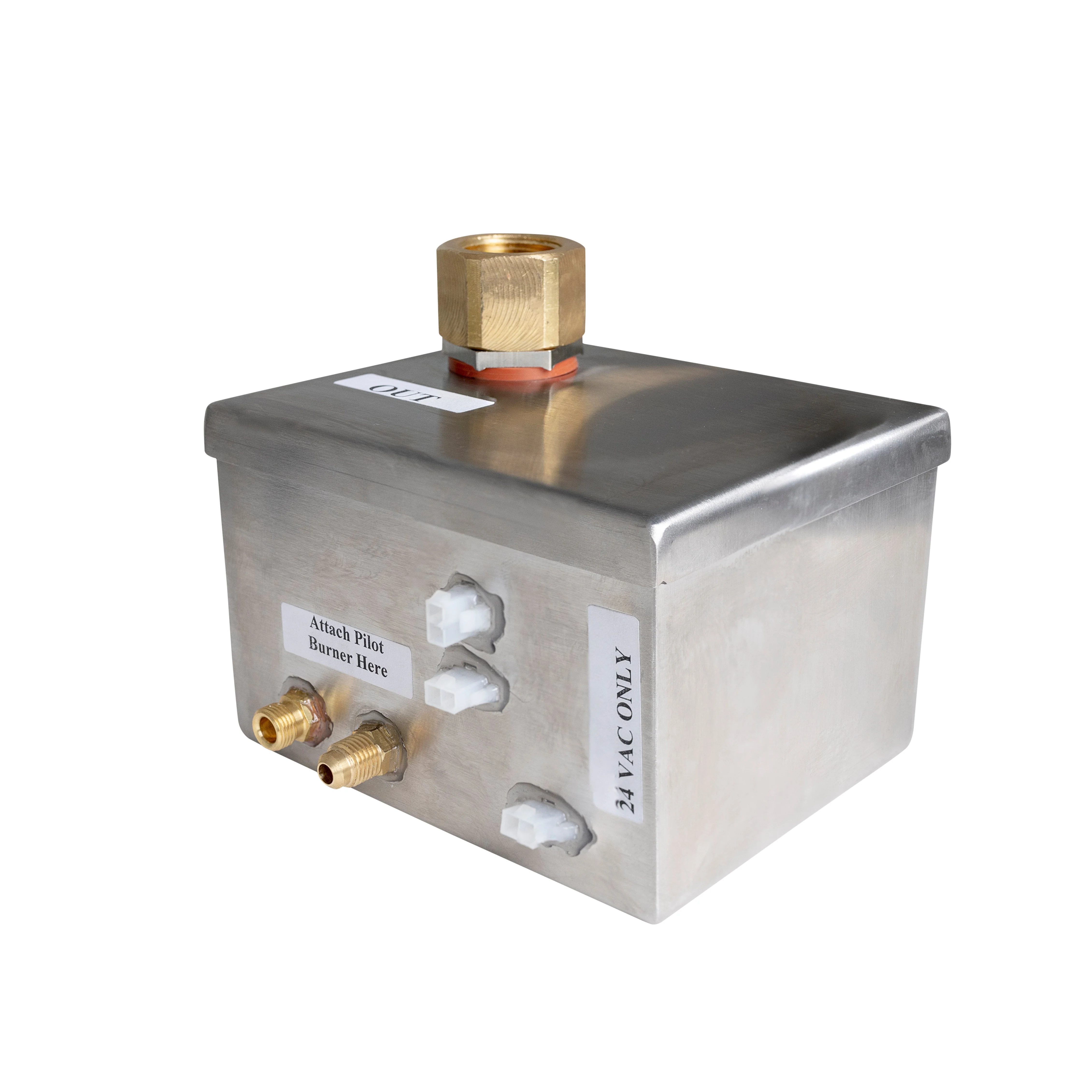

• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 29lbs of Fire Glass / 2 Bags of Lava Rock / 1 Bag of Rolled Lava Stone


24" Square Flat Burner Pan with Opening for Pilot Burner

• 12" Diameter Fire Ring - 85K BTU's (304 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 52lbs of Fire Glass / 3 Bags of Lava Rock / 1 Bag of Rolled Lava Stone.


30" Square Flat Burner Pan with Opening for Pilot Burner

• 18" Diameter Fire Ring - 162K BTU's (304 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1) 18" Whisper Free Flex Gas Line 1/2"
• Note: Holds 81lbs of Fire Glass / 5 Bags of Lava Rock / 2 Bag of Rolled Lava Stone.


36" Square Flat Burner Pan with Opening for Pilot Burner

• 24" Diameter Fire Ring - 170K BTU's (304 Stainless Steel)
• 1/2 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1) 24" Flex Line 3/4" with 1/2" x 3/4" Reducer.
• Note: Holds 117lbs of Fire Glass / 6 Bags of Lava Rock / 2 Bag of Rolled Lava Stone.


48" Square  Flat Burner Pan with Opening for Pilot Burner

• 36" Diameter Fire Ring - 238K BTU's (304 Stainless Steel)
• 3/4 Gas Inlet with NG Orifice or LP Air Mixer
• Battery Powered Ignition System Kit
• Natural Gas or Liquid Propane
• Includes (1) 36" Flex Line 3/4" - 3/4 x 1/2 SS Hex Reduce
• Note: Holds 208lbs of Fire Glass / 11 Bags of Lava Rock / 4 Bag of Rolled Lava Stone.


Documents

Preinstallation Checklist

BP AWEIS Installation Instructions

Pilot Burner Assembly Differences

Flat Pan And Burner Instructions

Drop In Pan And Burner Instructions

Flat Burner Pan Support Structure

Burner Pan Joiner Plate Instructions
