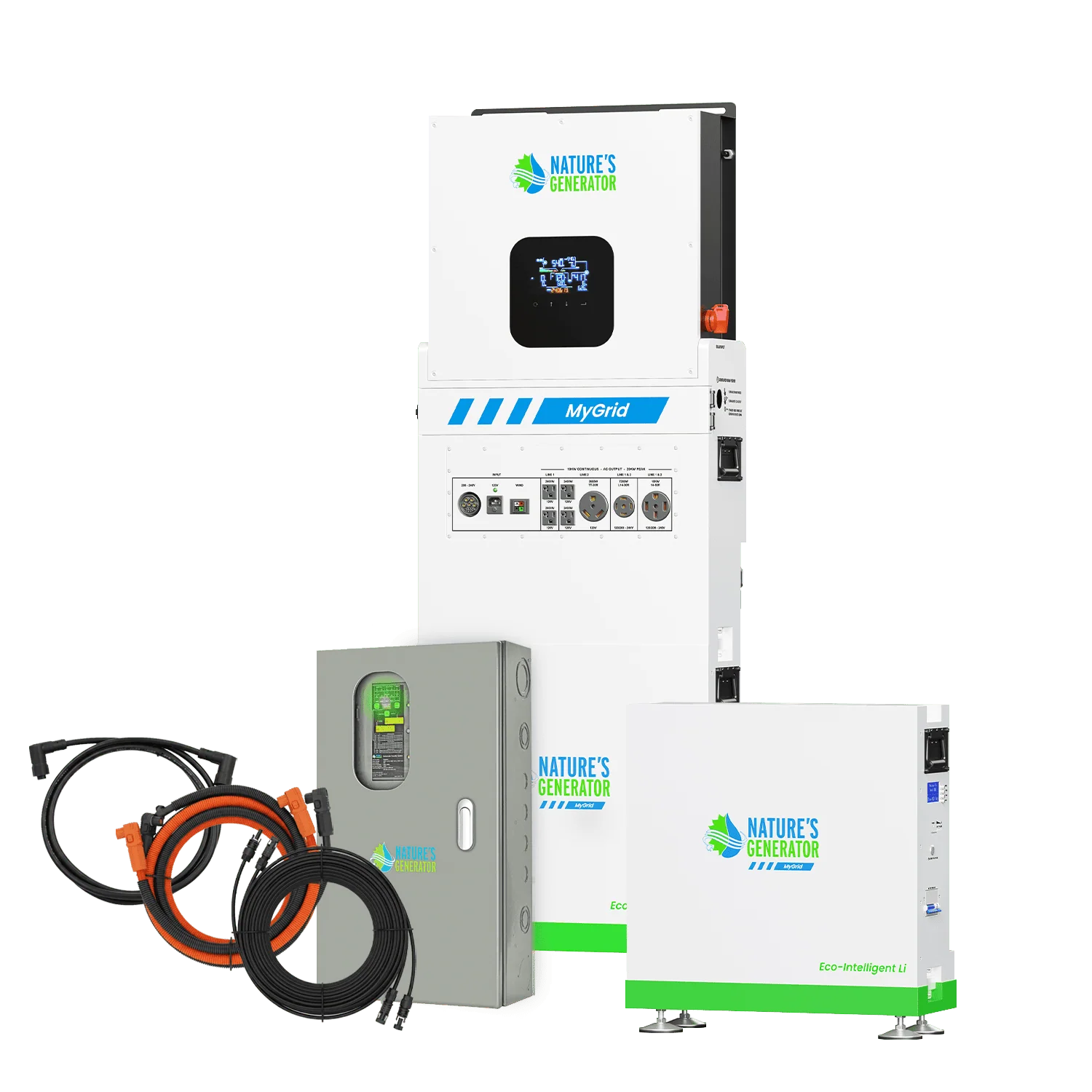

MyGrid 10K with Transfer Switch for House Battery Backup
Fast & Easy Installation: Plug-and-play design ensures quick setup and hassle-free relocation, providing flexibility for homeowners, renters, and temporary spaces.
Reliable 10kW Power: Provides 120V/240V output and a 10,496Wh battery for dependable whole home backup during outages and emergencies.
Expandable & Scalable: Add batteries, solar panels, or combine two MyGrid 10K units for up to 20kW of power to meet growing energy demands.
Compact & Versatile Design: Slim and space-saving, ideal for homes, apartments, RVs, or workplaces without compromising performance.
Integrated Transfer Switch: Includes 50A or 125A automatic transfer switch options for seamless home integration and uninterrupted backup power.
Eco-Friendly & Versatile Charging: Supports solar, wind, AC, and generator charging options for sustainable whole home energy solutions.
Easy System Monitoring: LED display tracks battery levels, power usage, and backup time, keeping you in control.
Technical Specifications
Battery:
Type: Lithium Iron Phospate (LiFePO4)
Capacity: 51.2V 205Ah (10496Wh)
Life Cycles: >6000 Cycles
Self DIscharge: Recommended recharging every 6 months
Inventer:
Output Continous Power: 10,000W
Outpeak Peak Power: 20,000W
Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases
Output Frequency: 60Hz
Output Power Form: Pure Sine Wave
Auto Switching: <20ms
Output Ports:
4x NEMA 5-20R Outlest
1x NEMA TT-30R Outlet
1x NEMA L14-30R Outlet
1x NEMA 14-50R Outlet
Input Ports:
2x Solar Input Ports
1x Wind Input Port
1x 120Vac Input Port
1x 208Vac or 240Vac Input Port
Charges:
120Vac Charger: 1000W
208Vac or 240Vac Charger: 4500W
Wind Charger: 350W
Solar Charger: 12,000W 120Vdc-550DVdc
Solar Charge Mode: MPPT
Dimension and Weight:

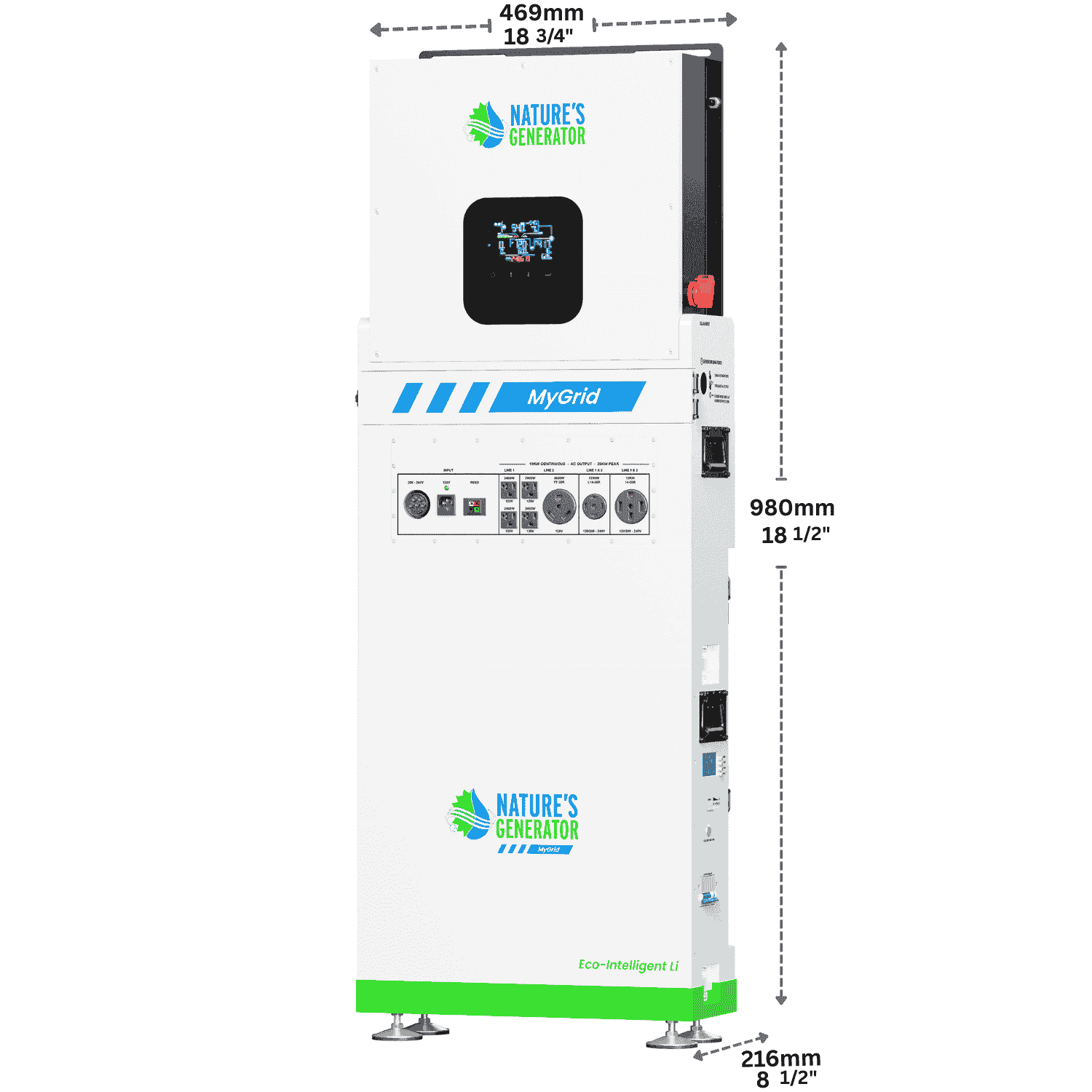

Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar
Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Generator Weight: 152 lbs (69 kg)
Battery Weight: 213 lbs (96.6 kg)
General:
Optimal Operating temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
Certification:
