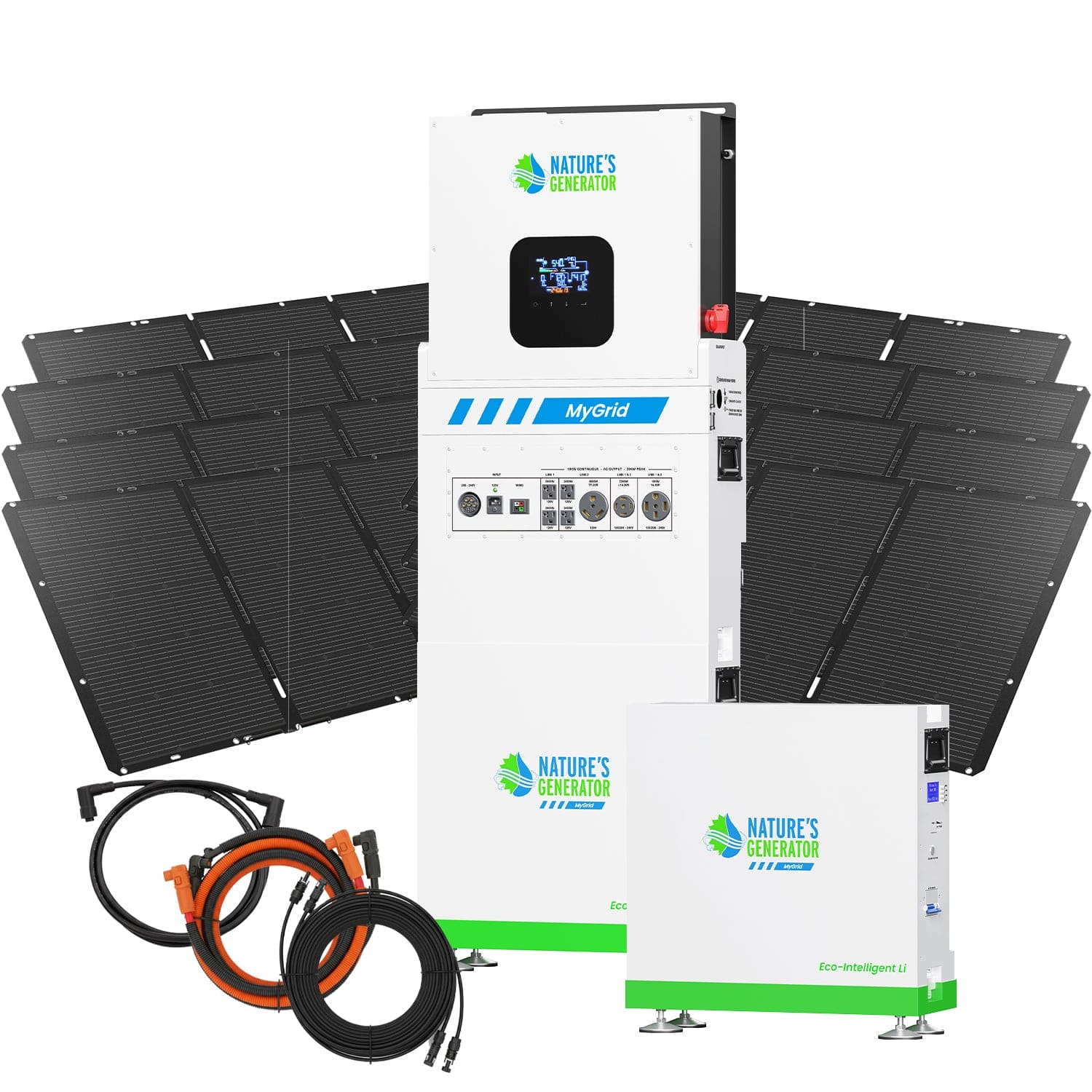

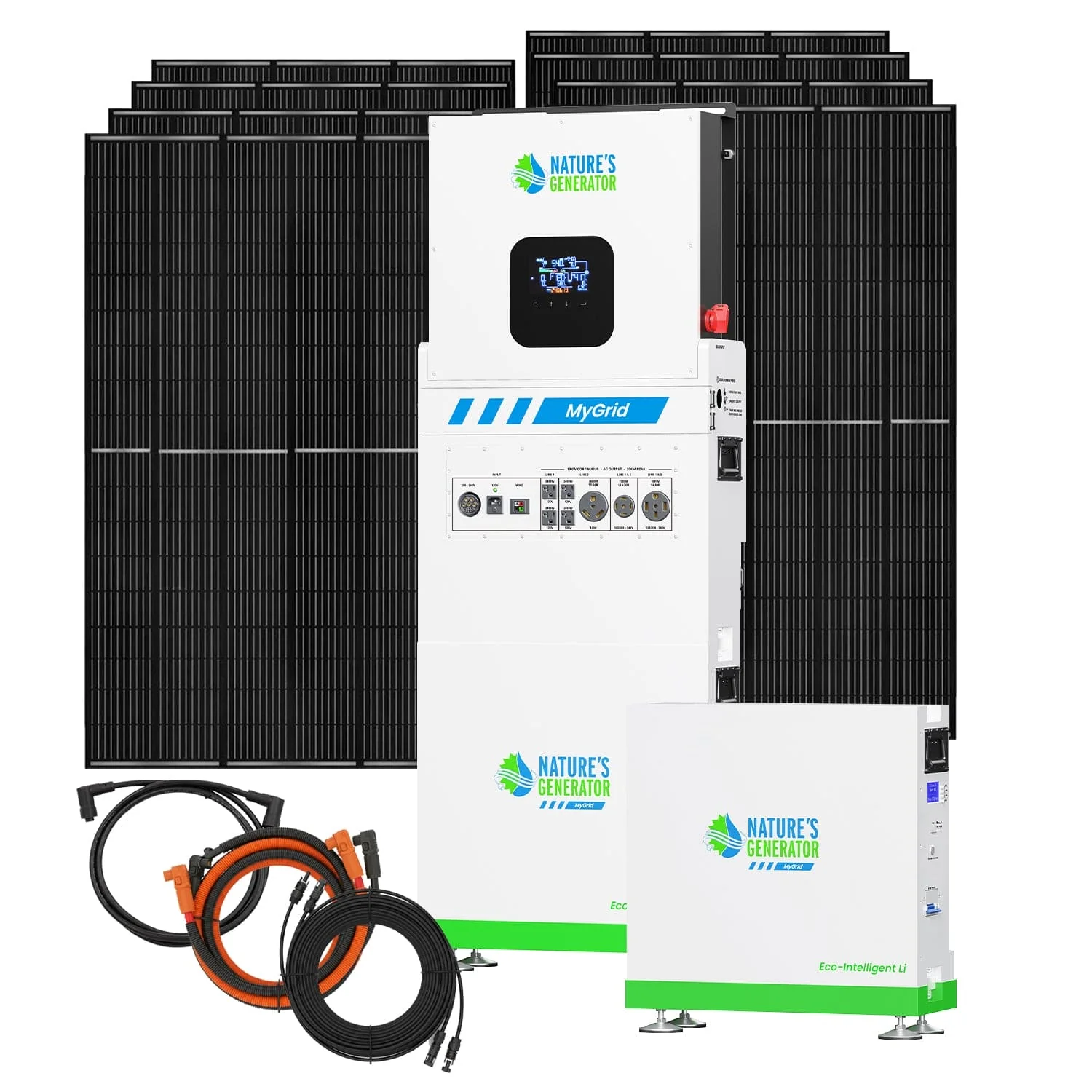

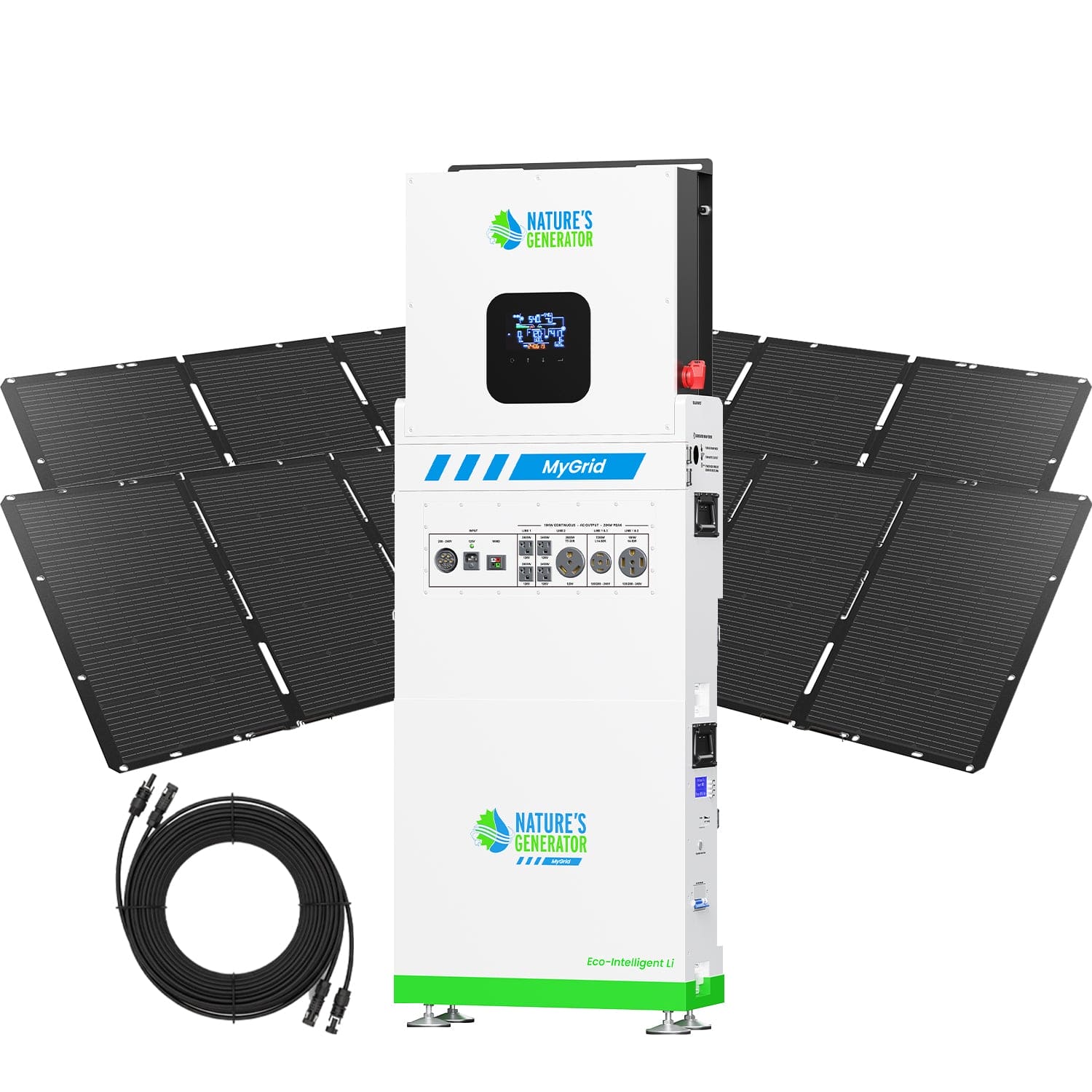

MyGrid 10K Solar Generator for Home
Fast & Easy Installation: Plug-and-play design ensures quick setup and hassle-free relocation, providing flexibility for homeowners, renters, and temporary spaces.
Powerful 10kW Solar Generator: Delivers 120/240V 10kW output and a 10,496Wh LiFePO4 battery, providing reliable power for heavy-duty appliances, whole-home backup, or off-grid living.
Customizable Solar Panels: Choose between 410W rigid or 400W folding solar panels to suit your energy needs.
Expandable Design: Add more batteries or solar panels to scale your system as your power requirements grow.
Compact & Space-Saving: Slim design fits seamlessly in homes, apartments, RVs, or workplaces while providing powerful performance.
240V High-Power Output: Easily supports heavy appliances and high-energy equipment for reliable residential use.
Eco-Friendly Charging: Supports solar, wind, AC, and generator charging options for sustainable whole home energy solutions.
Dual Voltage Input: Handles 120V for standard use and 240V for fast charging when needed.
Easy Monitoring: LED display tracks battery levels, power usage, and backup power for effortless system management.
Technical Specifications
Battery:
Type: Lithium Iron Phospate (LiFePO4)
Capacity: 51.2V 205Ah (10496Wh)
Life Cycles: >6000 Cycles
Self Discharge: Recommended recharging every 6 months
Inverter:
Output Continuous Power: 10,000W
Outpeak Peak Power: 20,000W
Output Voltage: 120V/240V Split Phase or 120V/208V 2 of 3 Phases
Output Frequency: 60Hz
Output Power Form: Pure Sine Wave
Auto Switching: <20ms
Output Ports:
4x NEMA 5-20R Outlet
1x NEMA TT-30R Outlet
1x NEMA L14-30R Outlet
1x NEMA 14-50R Outlet
Input Ports:
2x Solar Input Ports
1x Wind Input Port
1x 120Vac Input Port
1x 208Vac or 240Vac Input Port
Charges:
120Vac Charger: 1000W
208Vac or 240Vac Charger: 4500W
Wind Charger: 350W
Solar Charger: 12,000W 120Vdc-550DVdc
Solar Charge Mode: MPPT
Dimension and Weight:
Generator Dimensions: 21.8 x 8.5 x 38.5 inches (555.4 x 216 x 980 mm) not counting mounting bar
Battery Dimensions: 21.8 x 8.5 x 23.4 inches (555.4 x 216 x 596 mm) not counting mounting bar
Generator Weight: 152 lbs (69 kg)
Battery Weight: 213 lbs (96.6 kg)
General:
Optimal Operating temperature: 68 – 86°F (20 – 30°C)
Storage Temperature: 14 – 113°F (-10 – 45°C)
Battery Charging Temperature: 32 – 113°F (0 – 45°C)
Battery Discharging Temperature: 14 – 113°F (-10 – 45°C)
Certification:
400W Folding Solar Panels Specs
General:
Silicon Material : Mono crystalline
Connector: MC4
Waterproof Level: IP67
Operating Temperature: -20℃ to +60 ℃
Dimension & Weight:
Folded: 38.3*24*3.4inch (972*605*85mm)
Unfolded: 97*38.3*1.4inch (2462*972*35mm)
Weight: 17Ib (7.8kg)
Power Rating:
Max. Power Output Pmax (@STC): 400W
Cell transfer efficiency: 23%
Power Voltage: 34.41V
Power Current: 11.62A
Open Circuit Voltage: 39.77V
Short Circuit Current: 12.21A
410W Rigid Solar Panels Specs
Power Rating
Maximum Power (Pmax): 410W
Maximum Power Voltage (Vmp): 31.35
Maximum Power Current (Imp): 13.08
Open-circuit Voltage (Voc): 37.12
Short-circuit Current (Isc): 13.96
Module Efficiency STC (%): 20.97%
Dimensions & Characteristics
1755*1038*30mm (69.09*40.87*1.18 inch)
Cell Type: Mono PERC 182×91mm
No. of Half-cells: 108 (6×18)
Frame: Anodized Aluminum Alloy
Front Glass
3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
Operation Temperature
-40℃~+85℃ (-40°F ~+185°F )
Junction Box
IP68 Rated, connector compatible with MC4
Output Cables
1200mm (47.24 inch)
Fire Rating
UL: Type 1, IEC: Class C
Weight
20.5 kg (45.19 lbs)
